Escalera de goma telescópica multiusos para pies
Descripción del producto
\ n \ n \ n
orte
orte
orte
\ n \ n \ n
\ n \ n \ n otros tipos de aluminio que suministramos: \ n
orte
\ n \ n
orte
\ n \ n \ n
orte
orte

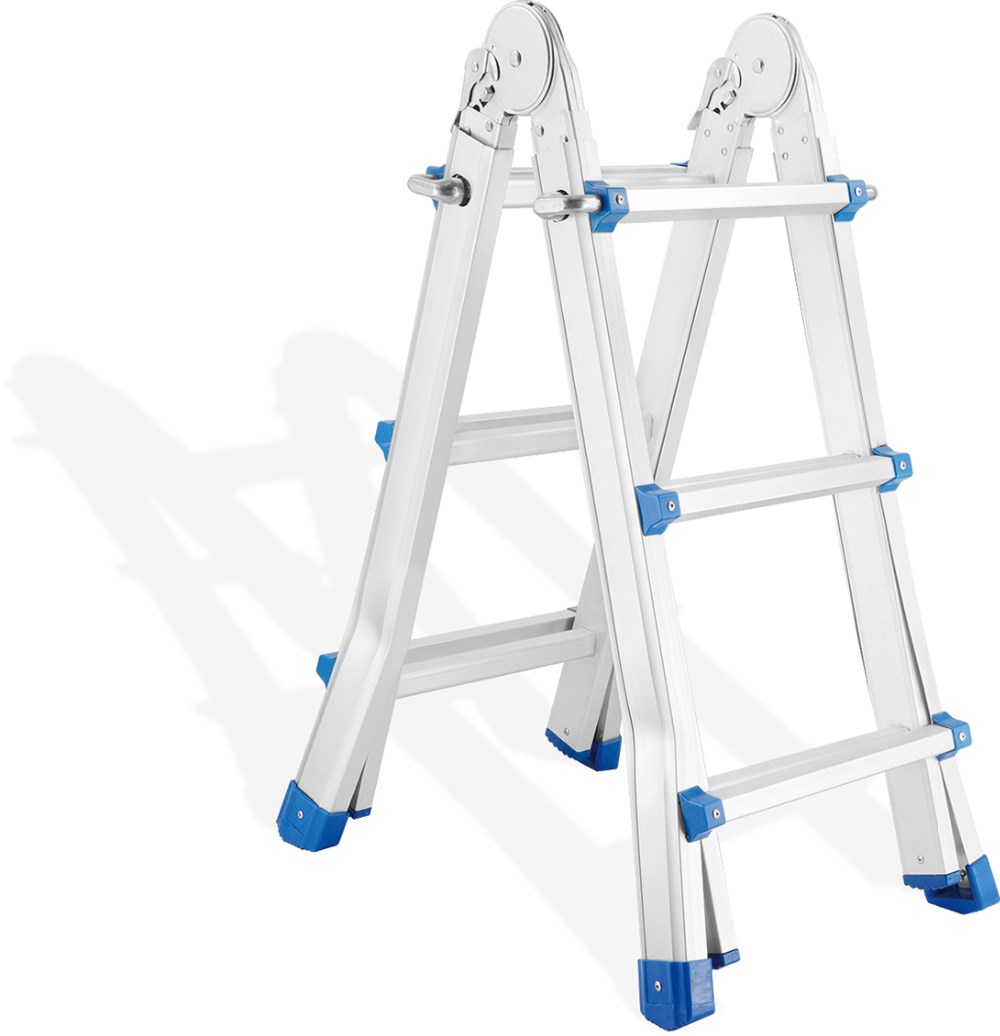

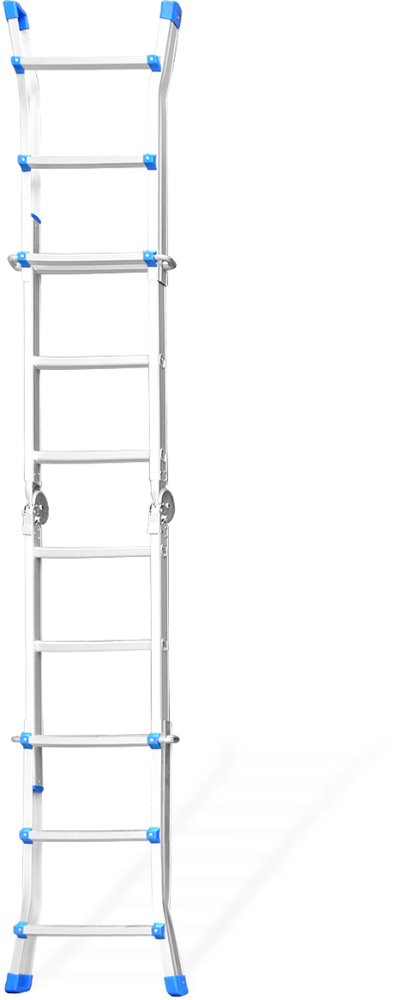

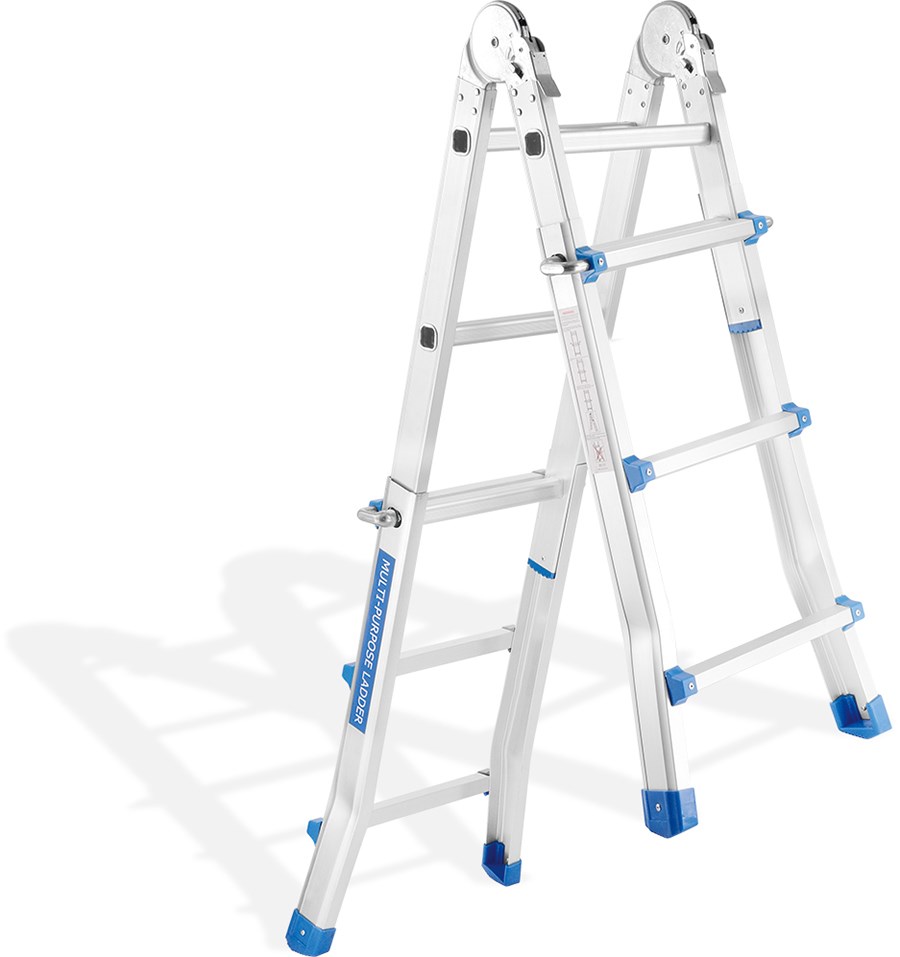

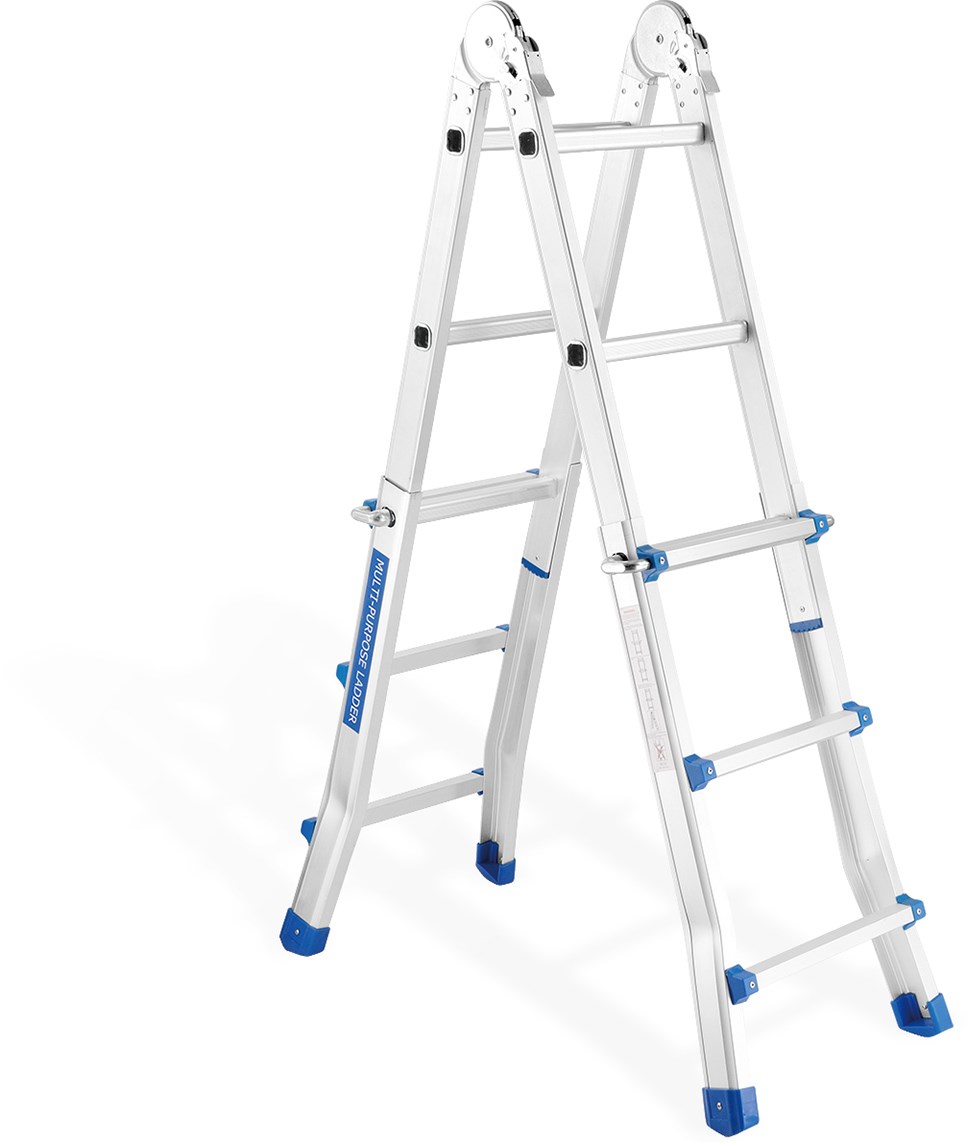

| 4x4 steps Aluminium Multipurpose Ladder | |
| 1. Item No. | DLM404 |
| 2. Number of rungs | 4folds × 4steps |
| 3. Total steps | 16 steps |
| 4. Straight Height | from 230cm to 398cm (Adjustable) |
| 5. "A" step ladder height | from 114cm to 194cm (Adjustbale) |
| 6. Folded height | 120cm |
| 7. Space between two rungs | 28cm |
| 8. Material | Aluminium alloy(6063A) |
| 9. Thickness | 1.2-1.8mm |
| 10. Max load | 150kg |
| 11. Packing size | 122*20*48cm(1pc/package) |
| 12. Packaging Details | carton/pc |
| 13. N.W | 9.9kg |
| 14. G.W | 11kg |
| 15. Load quantity(20GP/40HQ) | 240pcs/580pcs |
| 16. Optional size | DLM403(2.86M, 4×3 steps), DLM404(3.98M, 4×4 steps), DLM405(5.M, 4×5 steps), DLM406(6.22M,4×6 steps) |
| Item No. | Steps | Step Distance(cm) | Straight Height(cm) | A Type Height(cm) | Folding Height(cm) | Net Weight(kgs) | Packing Size(cm) | Max Load(kgs) | 20GP(pcs) | 40HQ(pcs) |
| DLM403 | 4*3 | 28 | 174 to 286 | 88 to 141 | 92 | 8.2 | 94*20*48 | 150 | 310 | 760 |
| DLM404 | 4*4 | 28 | 230 to 398 | 114 to 194 | 120 | 9.9 | 122*20*48 | 150 | 240 | 580 |
| DLM405 | 4*5 | 28 | 286 to 510 | 141 to 247 | 148 | 11.6 | 150*20*48 | 150 | 200 | 470 |
| DLM406 | 4*6 | 28 | 342 to 622 | 148 to 300 | 176 | 13.3 | 178*20*48 | 150 | 170 | 400 |
orte
orte
\ n \ n \ n
\ n \ n \ n otros tipos de aluminio que suministramos: \ n
orte
\ n \ n
orte
| Safety First! Before use the ladders, please read the marking carefully! | |
| Features | 1. Multi-purpose ladder can be used as straight ladder,"A" step ladder, and could the height could be adjutable, Very easy to storage. |
| 2. Platform can be set half way on the stairs. | |
| 3. Can be turned into step ladder or straight ladder. | |
| 4. Light weight, easy to assemble. Can be folded down neatly for easy storage or transport. | |
| 5. Made of rust proof, light weight aluminium. With a load capacity of 150kg. | |
| 6. Can be transformed into different formations to fit a huge variety of purpose of different jobs. | |
| Guides | 1.Inspect upon receipt and before each use. |
| 2. Always ensure all locking mechanisms are in the locked position before stepping on it or applying weight of any kind. | |
| 3. The stabilizer bars must be properly and securely fitted before use. | |
| 4. The scaffold plates must be fitted when using the ladder in positions that require them. | |
| 5. Always keep the ladder dry, clean and free of debris and foreign materials. Clean after each use. | |
| 6. Always use a firm grip and face ladder whenever possible. | |
| 7. Always set up the ladder on a surface that is level, stable and dry. | |
| 8 All working parts must be in good working. | |
| Caution | 1. DANGER, METAL LADDERS CONDUCT ELECTRICITY.Do not let ladders of any material come in contact with live electrical wires. |
| 2. Do not operate on uneven or slippery surfaces, this can cause serious injury. | |
| 3. Do not use ladder if broken, worn or if exposed to fire or chemical corrosion. | |
| 4. Never set up the ladder in front of doors that are not locked. | |
| 5. Never use ladder as brace in any way. | |
| 6. Never place yourself or allow anyone to stand or work under scaffolding or ladder while in use. | |
| 7. Do not stand on ladder while releasing the locking mechanisms. | |
| 8. Do not attempt to switch ladder positions while on the ladder. | |
| 9. To protect children, do not leave ladder set-up and unattended. | |
